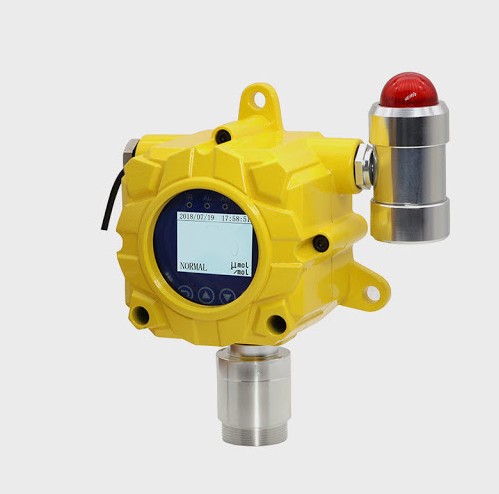

BARUCH Fixed Industrial lpg gas natural CH4 gas detector
Features
- NDIR technology with long lifespan and full measurement range
- Complied with the explosion-proof grade Ex iaⅡC T4 Ga
- Internal full range temperature compensation
- Diffusion sampling, stable performance
- High precision, high resolution 0.01%
- Compact size,fast response
- Corrosion prevention
- Easy install and less maintenance
- Compatible with digital and analog voltage signal output
Specifications
Measurement range | 0-5% vol, 0-100% vol |
Measurement method | NDIR |
Accuracy | 0~1%: ≤±0.1%vol; 1~5%: ≤±(0.05%+5% of reading); 5%~full range: ≤±10% of reading |
Warm-up | <10s |
Response time | T90<25s at 20℃ |
Working voltage | 3.3-6.0V |
Working current | 55-60mA |
Output voltage | 0.4-2V/TTL |
Digital signal format | RS 232 data bit:8 ;stop bit:1; check bit: null |
Baudrate | 9600 bps |
Working temperature | -40℃ to 70℃ |
Dimensions | ¢20*19mm (except pin) |
Output pin | 5 pins |
Life span | ≥ 10 years |
Ex-proof Level | Ex ia IIC T4 Ga |
Note: 1. The measurement accuracy is defined as temperature 25 ± 2 ℃ and atmospheric pressure 101.3kPa.
The above functions and specifications are subject to the formal product technical specifications. For more technical information
2. LPG Gas Leak Detector
Product Price : Get Latest Price
Product Details:
Name of Gases Detected | LPG |
Operating Temperature | -20 to +60 deg C |
Power Source | Battery |
Measuring Range | 0 TO 1000 ppm |
Response Time | 5 sec |
Brand | Gasvigil |
Voltage | 220V AC |
Country of Origin | Made in India |
Accuracy | +/- 3% FS |
Protecting Class | IP 65 |
Ambient Humidity | 0 to 95% RH |
We are offering LPG Gas Leak Detector to our clients.
